24kV Metal Clad Metal Mounted Withdrawable Switchgear With Vacuum Breaker

Name: 24kV Metal Clad Metal Mounted Withdrawable Switchgear With Vacuum Breaker
Brand: Tianan Electric
Price: 1 USD

China 24kV Metal Clad Metal Mounted Withdrawable Switchgear With Vacuum Breaker wholesale

Brand Name : Tianan Electric

Model Number : KYN28

Certification : XIHARI

Place of Origin : CHINA

MOQ : 1 unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 units / year

Delivery Time : 45 work days

Packaging Details : Standard export package

Price : Pending

Voltage : 12kV / 24kV

Current : 630A ~ 4000A

Breaker : VS1/VD4/ others

Frequency : 50/60Hz

Contact Now

24kV Metal Clad Metal Mounted Withdrawable Switchgear With Vacuum Breaker

Product Description:

KYN28A series Mid–mounted withdrawable switchgear, is a 15~24kV three-phase AC 50Hz complete distribution device of single busbar and its sectional system, It is mainly used to control, protect, and supervise circuits for the power supply of power plant, medium or small generator, distribution of factory, mining, as well as power acceptance and transmission from the secondary substation in the power system.

Working Conditions
1. Ambient air temperature: -15°C~+40°C.
2. Altitude: ≤1000m.
3. Relative humidity : Daily average≤95%, daily averange of vapour pressure≤2.2kpa.
4. Earthquake intensity: ≤magnitude 8.
5. Applicable in the places without corrosive and flammable gas and water vapor.
6. Used in place without frequently intense vibrant.
Note: Customized products are available.

Reference specification for 24kV

No.	Items		Unit	Data
1	Rated voltage		kV	15KV-24KV
2	Rated insulation level	1min power frequency withstand voltage	kV	65
2	Rated insulation level	Lighting impulse withstand voltage	kV	125
3	Rated frequency		Hz	50
4	Rated current		A	1000/1250/1600/2000/2500/3150
5	Rated short-time withstand current (4s)		kA	16/20/25/31.5/40/50
6	Rated peak withstand current		kA	40/50/63/80/100/125
7	Protection degree			Outer shell IP4X, cubicle and circuit breaker door open IP2X

24kV Metal Clad Metal Mounted Withdrawable Switchgear With Vacuum Breaker

Product Tags:

metal clad switchgear

middle voltage switchgear

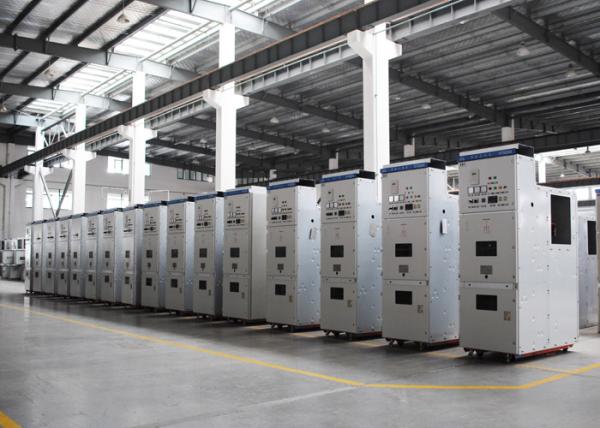

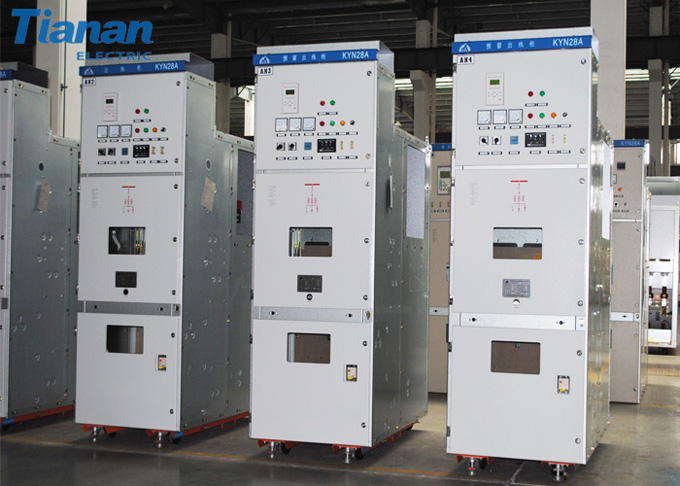

24kV Metal Clad Metal Mounted Withdrawable Switchgear With Vacuum Breaker Images
